Model No:CEI-AMS-KJ05

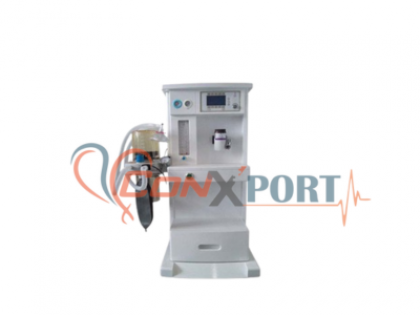

Anesthesia machines play a pivotal role in ensuring patient safety and comfort during medical procedures. Among the diverse range of anesthesia machines available, one that stands out as the epitome of excellence is the Diamond Standard Anaesthesia Machine. This state-of-the-art equipment sets a new benchmark in the field, offering unparalleled precision, reliability, and safety for medical professionals and their patients. Patient safety is paramount, and the Diamond Standard Anaesthesia Machine goes above and beyond to ensure it. Equipped with state-of-the-art safety features, including redundant systems and fail-safe mechanisms, this machine provides an additional layer of protection against potential complications. Its comprehensive monitoring capabilities enable real-time tracking of vital signs, offering a complete picture of the patient's condition. The Diamond Standard Anaesthesia Machine adheres to and often exceeds international safety and quality standards. Meeting or surpassing regulatory requirements, this machine provides healthcare facilities with the confidence that they are utilizing equipment of the highest standard, contributing to a culture of excellence in patient care. the Diamond Standard sets itself apart as a symbol of excellence. With its precision engineering, intuitive design, focus on safety, versatility, durability, and compliance with industry standards, this anesthesia machine represents a significant leap forward in the quest for optimal patient care. Choosing the Diamond Standard Anaesthesia Machine is an investment in the well-being of patients and a testament to a commitment to the highest standards in medical practice.
Main body is made of High-strength engineering plastic rack, light,beautiful and corrosion resistant
It can be applied on both Adult & Child
Gas source is O2 & N2O: 0.28~0.6MPa
Flow meter of O2 is 0.05~1.0L/min 1.1~10L/min
N2O: 0.05~1.0L/min 1.1~10L/min
Flow rate of rapid oxygen supply 25~75L/min
Low oxygen pressure alarm There will be sound alarm when the oxygen pressure< 0.2MPa
Vaporizer Among Halothane, Enflurane, Isoflurane and Sevoflurane,any one can be chosen for application as required by the customer. The high-precision Vaporizer is designed with a stable concentration output, automatic compensation for pressure, temperature and flow rate.
Reliable pneumatic transmission system.
Modularized design and upgrading is available.
Vaporizer has the function of automatic compensation based on pressure,temperature,and flow rate. The regulation range of evaporator concentration is 0~5 vol%.
Respiratory circuit
working mode: all-close, semi-close, semi-open APL:?12.5kPa
Respiratory bellows for adults, bellows for children are supplied with the Machine
Tidal volume range is 0~1500 ml
Ventilator Specs : Display mode High-definition 5.7” LCD screen display
Ventilation modeI PPV,SIPPV, SIMV, MANUAL
Ventilation parameters Tidal volume 50~1500ml
Rate 2~99bpm
SIMV 2~20bpm
I:E 2:1~1:8
Inspiratory trigger pressure -10~20cmH2O
PEEP2~20cmH2O
Pressure limitation10~60cmH2O
SIGH 1.5 times the inspiratory time/100bpm
Parameters for ventilation monitoring tidal volume, minute ventilation volume, IPPV rate, SIMV rate,total respiratory rate, I/E, peak pressure of airway,pressure - time waveform, flow - time waveform, PEEP, inspiratory trigger pressure,(average pressure, oxygen concentration, battery capacity)
Security Alarm System
Oxygen concentration alarm : upper limit setting range (21%~99%)
low limit setting range (18%~80%)
Airway pressure alarm upper limit setting range 5~60 cmH2O
Low limit setting range 0~50 cmH2O
Minute ventilation volume alarm upper limit setting range 1~20 L/min
Low limit setting range 0~19L/min
Tidal volume : upper limit setting range 100~1500ml
low limit setting range0~1400ml
Sustained high-pressure alarm, it will give alarm when stress have consistently been higher than 2.5cmH2O
(Suffocation alarm, Power alarm, Intubation off alarm, battery voltage alarm)
Power is AC 220V 50Hz
